TOILET SYMPTOM:Water Level Close To Top Of Toilet Overflow Pipe SolutionLower the water level setting of fill valve. Adjusting the Water Level Fluidmaster has two types of fill valves: the newest valve has a plastic adjustment rod and the older style has a stainless steel rod and clip. The new plastic adjustment is a screw type as shown in fig. A. The older style stainless steel is in fig. B Plastic screw adjustment rod Using your fingers or a screw driver, turn the head of the screw in the clockwise direction to raise the float cup which raises the water level setting. To lower the setting you must first flush the tank. While the tank is flushing begin turning the screw adjustment rod counter clockwise several times. The valve is shut off at the new setting. Stainless steel adjustment rod You will find the water level adjustment clip located on the front of the black float cup. Squeeze and hold the outside edges of the clip and push the clip and float cup lower on the stainless steel link to lower the water level setting.

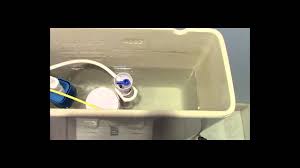

Raise the clip and float higher on the link if you want to raise the water level in the tank. Release the clip after you move to a new location on the stainless steel rod. Note: The stainless steel link has a crimp or flattened out spot above the water level adjustment clip, and one at the end of the link. If the water level adjustment clip is already at the crimp on the stainless steel link you cannot raise the water level setting any higher unless you raise the height of the fill valve. See (adjusting height of fill valve). Top View Of New Fill Valve Side View Of Standard Fill ValveThe toilet is arguably one of the most important fixtures in any home, but when it comes to proper maintenance, toilets often receive the least amount of consideration. Fortunately, adjusting the water level in the toilet tank stands as one of the easiest and most utilitous tasks that users can conduct. Not only does raising the water level allow the toilet to flush with greater force, helping to clean and remove sediment from the water bowl, but it also elicits a complete exchange of water in the toilet basin while producing a wider drain valve that is less likely to clog.

With just a standard screwdriver and pliers, as well as a complete understanding of the flush system, anyone can quickly and easily raise the water level in their toilet tank. Components of a Typical Toilet Flush System By taking the tank lid off on the back of the toilet, amateur plumbers are instantly greeted with a fairly complex flushing contraption, so before doing any work within a toilet tank (such as raising the water level), it is crucial for home plumbers to familiarize themselves with the various parts and how the toilet flush valve affects the toilet flushing function. Toilet Roll Making Machine For SaleAdditionally, although there are hundreds of toilet manufacturers, many use a fairly similar system. New Paint Peeling On Bathroom CeilingIn the very center of the toilet, locate the long vertical tube that has the toilet fill tube and toilet flapper connected to it. Raw Cat Food Mice

For a quality flush, the tank water level should rest about 1/2-inch down from the top of this tube. Toilet Ball Float vs. Fill Valve In addition to the vertical elements of the toilet tank, home plumbers should find another vertical tube off to the side of the tank that features a built-in float or fill valve, also known as the ballcocks. It is this ballcock that determines the water level in the tank, as raising the ballcock raises the water level and vice versa. Although this sounds quite simple, plumbers need to know which type of float their toilet features in order to be able to move it. Fortunately, spotting the difference between the two is easy, as ball float toilets contain a plastic or rubber ball filled with air at the end of a metal arm, while fill valve toilets feature a cylindrical float that is surrounding a smaller cylinder. Making Adjustments to the Toilet Ballcock With a simple understanding of the different parts of the toilet flush tank, plumbers are much better prepared to start making adjustments to the fill valve.

Fortunately, most ballcocks have a simple set of retaining clips or screws that allows for adjustment. By understanding the adjustment operation for the different flush assemblies, plumbers can ensure that no matter what toilet they come across, they can easily adjust the water level. Plunger or Piston Type Among earliest known styles of fill valves Made of heavy-duty brass Designed with hinged lever assembly above ballcock Thumbscrews located at hinged joints to allow lever arm adjustments If there are no thumbscrews, gently bend the rod upwards to increase water level Cast brass or plastic body construction Anti-siphon type of ballock Uses float rod or ball Water discharged through small-diameter refill hose Gently bend the rod upwards to increase water level on older, brass models Plastic diaphragm ballcocks feature adjustment screw on top that adjust height of rod and ball O-shaped cup moves up and down concentrically around a fill valve shaft Locate the metal spring clip attached to the metal actuating rod on the top of the ballcock assembly Pinch both sides of the metal spring clip are slide it upwards along actuating rod Releasing clip locks it in place

Plastic anti-siphon fill valve Attached to bottom of toilet tank and operates underwater Locate the adjustment screw at the top of the valve Turning adjustment screw counterclockwise raises water level After adjusting the ball float or fill valve, it is important to conduct a few test runs to ensure that the tank fills with water to desired levels. Then, flush the toilet and let it fill back up. Ideally, the water should fill to about 1/2-inch below the top of the fill tube. How to Buy Toilets and Toilet Components on eBay Toilets that feature low water levels are often quite ineffective when it comes to cleaning the sides of the toilet basin, while a higher water level conducts an effective flush that reduces the chances for clogs and allows for a complete exchange of water in the basin. Fortunately, a simple water raising procedure in the toilet tank can take care of most flushing problems, and when looking for a new toilet or toilet tank components, you can instantly find what you need on eBay.
